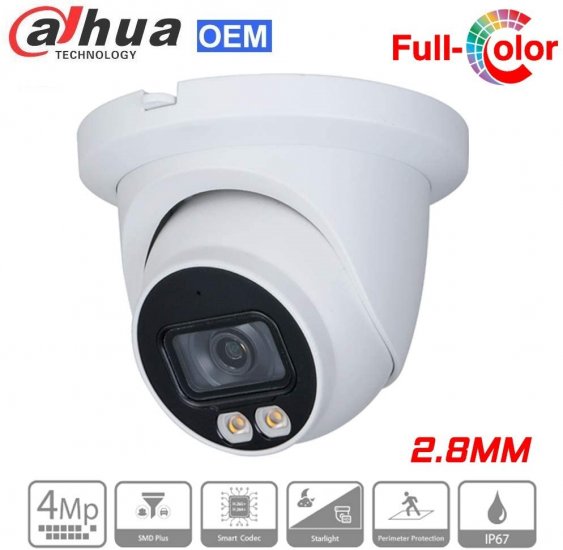

4MP Full-color Warm LED Fixed focal Eyeball WizSense PoE IP Dome

  • Model: IPC-HDW3449TM-AS-LED
  • Shipping Weight: 2lbs
  • 20 Units in Stock
  • Manufactured by: DAHUA

$129.95

Add to Cart:

DAHUA OEM 4MP Full-color Warm LED Fixed focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus.

This unit is 802.3af POE. This unit can also be used with a 12VDC power source as well.

*Generic OEM version; there may be no Dahua logo or model number on the product.

(Power Adapter NOT INCLUDED, Sold Separately)

  • 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  •  Outputs max. 4MP (2688 × 1520) @ 30 fps
  •  H.265 codec, high compression rate, ultra-low bit rate
  •  Built-in Warm LED, max. LEDs distance: 20 m
  •  ROI, SMART H.264+/H.265+, flexible coding, applicable to various
  • bandwidth and storage environments
  •  Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
  • applicable to various monitoring scenes
  •  Intelligent detection: Intrusion, tripwire (Recognition of vehicle and human)
  •  Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  •  Supports max. 256 G Micro SD card, built-in Mic
  •  12V DC/PoE power support
  •  IP67 protection
  •  SMD
Camera
Image Sensor 1/2.7”4Megapixel progressive CMOS
Max. Resolution 2688 (H) ×1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100, 000 s
Min. Illumination 0.003 Lux @ F1.0
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (warm LED)
Pan/Tilt/Rotation Range Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: Horizontal 103° × vertical 53° × diagonal 122°

3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°

Iris Type Fixed
Close Focus Distance 2.8 mm: 1.2 m (3.9 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 38.6 m

(126.6 ft)

15.4 m

(50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

Professional, Intelligent
Perimeter Protection Tripwire, intrusion (Recognition of vehicle and people)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream (2688 × 1520 @ 1–25/30 fps)
sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps)
third stream (1280 × 720 @ 1–25/30 fps)
Stream Capability 3 streams
Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Color/B/W
BLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G726; AAC
Alarm
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene self-adaptation Yes
User/Host 20 (Total bandwidth: 64M.)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8; IE9; IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE
Power Consumption < 8.5W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/ less than 95%
Storage Conditions -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67
Structure
Dimensions 99.1 mm × Φ121.9 mm (3.9″ × Φ4.8″)
Net Weight 480 g (1.05 lb)
Gross Weight 660 g (1.45 lb)
