Mini 2 Channel Full HD Mobile DVR, Support 5MP/4MP1080P/720P AHD Camera(And CVBS
Camera) ,Recording At The Same Time. The DVR Support Max. 128GB SD Card(Dual SD
slot ). Recording Mode Support Power Up /Manual /Motion Detection. Security Code
to Protect DVR Can Not Be Operated Without Password.
***SD Card are not included**
**This Mini DVR is Not Support (SDI, CVI, TVI) Camera. Only Support
AHD and Analog Camera.
Features：
- MINI Size,5MP/4MP1080P/720P/D1 2CH Mobile DVR
- 5MP/4MP1080P/720P/D1 Resolution Optional

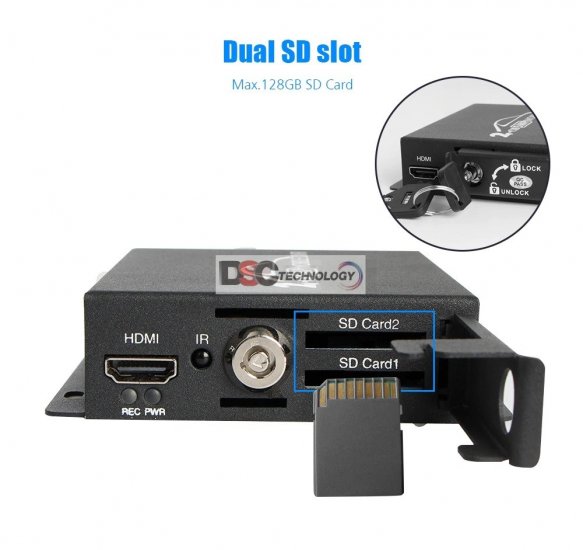

- Max.128GB SD Card(Dual SD slot )

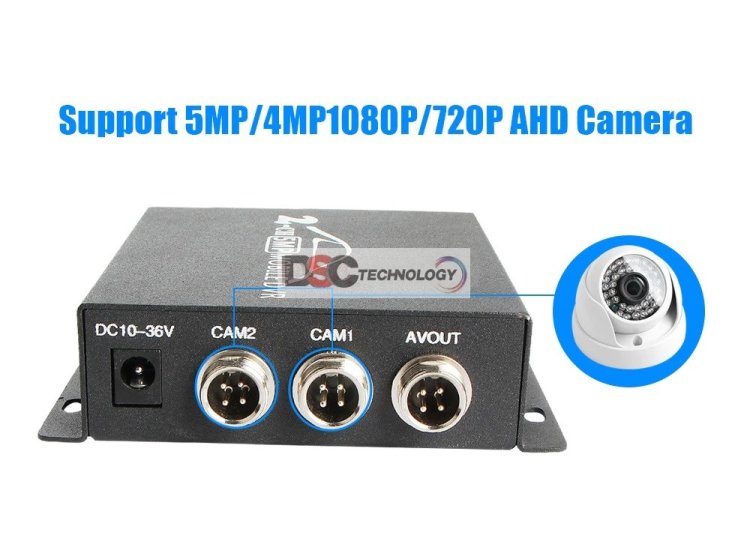

- Support 5MP/4MP1080P/720P AHD Camera
- Support 10V-32V Power Input,12v,1.5A Output

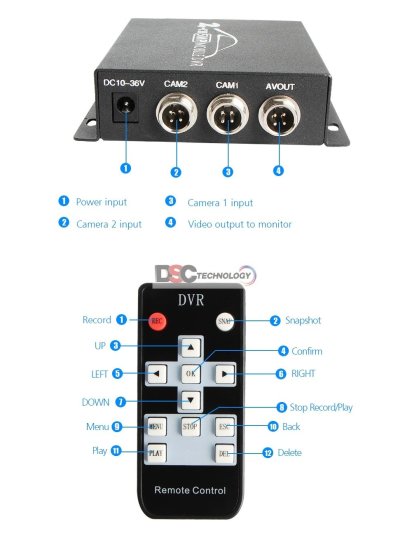

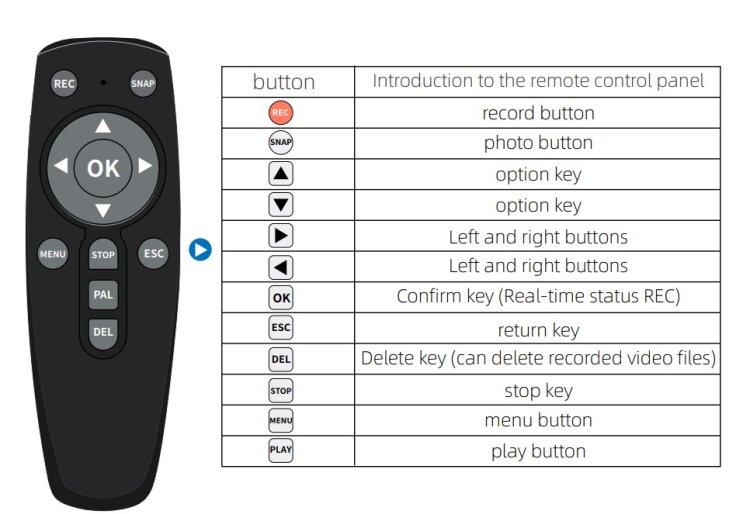

- Support IR Remote Control
- Support HDMI or AV Output Display
- Support Multi Record Modes: Auto Record when power is ON,
Timer ,Manual ,Motion Detection
- Support Language:Chinese,English
- Support Audio
- Support Capacitor power-off protection
- Support Stable Voltage output
- Support Delay Shutdown
- Support Identification Camera
Specifications:
| System |
Language |
Simple Chinese/English |
| Interface |
Image menu |
| Encryption |
Admin password |
| Video |
Video input |
1/2 Channel composite input(AHD) 1.0V,p-p,Impendence 75Ω,BNC |
| Video output |
1 Channel composite output, 1.0V,p-p,Impendence 75Ω,BNC |
| Video display |
1/2 channel in 1 screen |
|
Resolution &
AHD Standard
|
CVBS (720X576) |
| AHD 720P（1280X720） |
| AHD 1080P (1920X1080) |
| AHD 3.0MP not Realtime/ AHD 3.0MP Realtime (2048X1536) |
| AHD 4.0MP not Realtime/ AHD 4.0MP Realtime (2560X1440) |
| AHD 5.0MP not Realtime/ AHD 5.0MP Realtime (2592X1944) |
| Audio |
Audio input |
1/2 channel audio input, Impendence 47KΩ,RCA |
| Audio output |
1 channel audio output, Impendence 10K,RCA |
| Record mode |
Audio video Synchronous recording |
| Audio compression |
G711 |
| Image and storage |
Image compression |
H.264 High Profile, auto adapt to dynamic bit stream |
| video bitrate |
D1: 200Kbps ~ 10Mbps,5 levels of image quality for options |
| Audio bitrate |
8KB/s(after compression) |
| storage |
Dual SD slot(Max.128GB SD Card) |
| Record |
AVI audio video sync file output |
| 3rd party media |
VLC media player, storm media, WINAMP |
| Update |
SD card upgrade |
| Power |
Input |
DC:+10V ~ +32V |
| Output |
+12V 1.5A |
| Power |
Less than 5W |
| Temp |
Working Temp |
-10℃ ~ +60℃ |

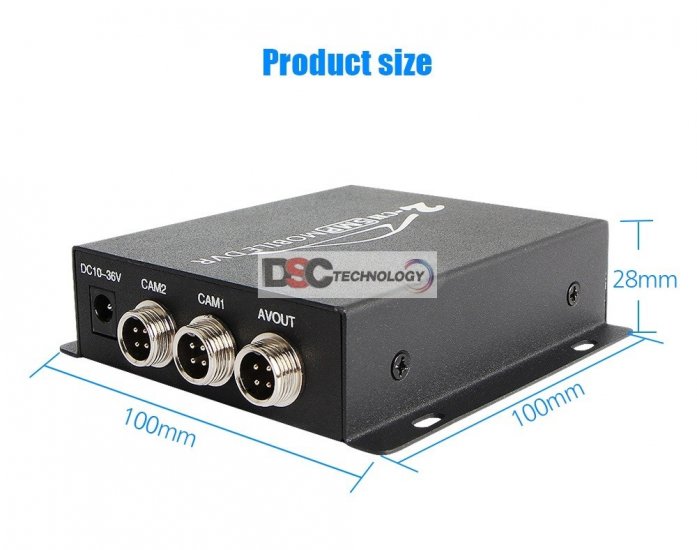

| Dimension |
10CM（W）X2.8CM（H）X11.2CM（L） |

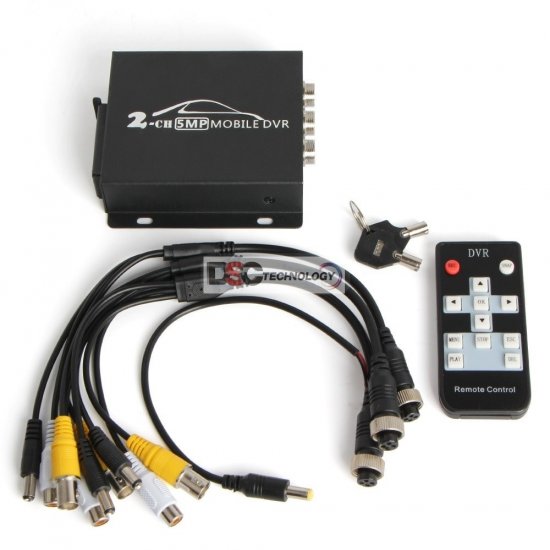

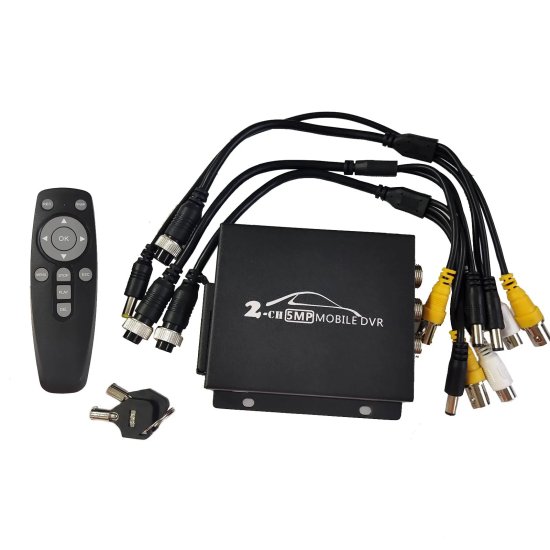

Package Contents:
- 1 x 2CH MINI HD Mobile SD Card DVR
- 2 x Keys
- 1 x Aviation to BNC Cable
- 1 x Power Cable
- 1 x Remote Control
