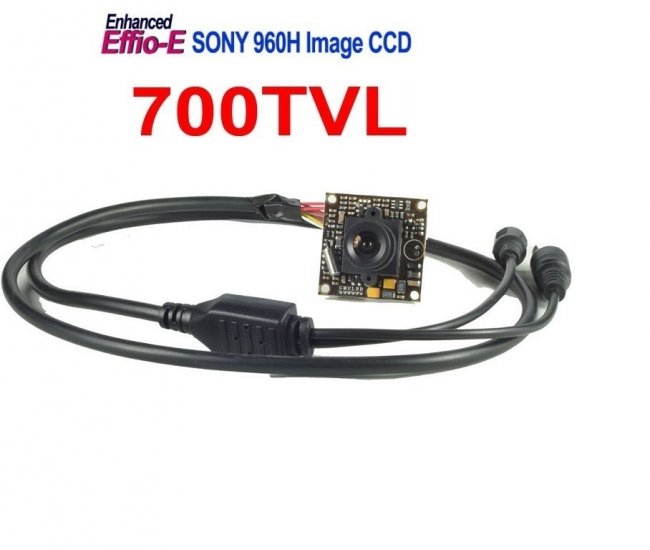

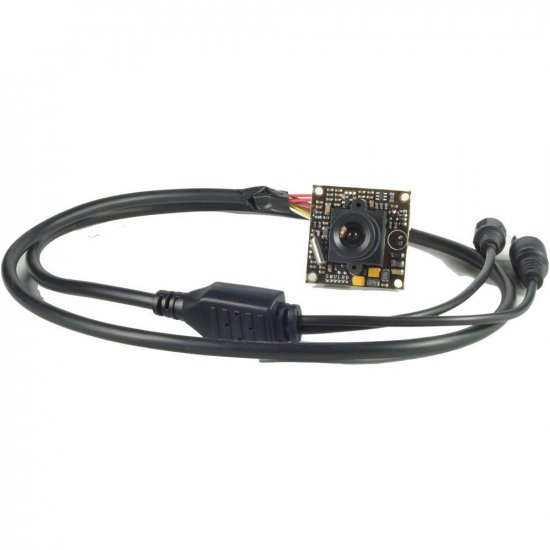

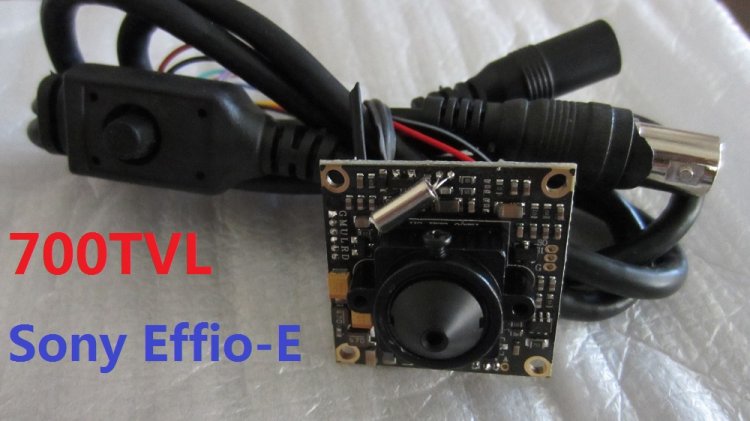

HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC

(image for) HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
(image for) HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
(image for) HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
(image for) HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
(image for) HD 700TVL Color Board Camera 1/3 Inch SONY CCD D-WDR OSD Menu BNC
  • Model: PCBC700TVL
  • Shipping Weight: 0.25 lbs
  • 10 Units in Stock

 Ask a Question

$26.95

Please Choose:



Add to Cart:

Mini HD SONY Effio-E 700TVL DSP CCD PCB Board Hidden CCTV Camera


*****THIS IS NTSC VERSION****

Overview:

  • 1/3" Sony CCD 700TV Lines, 0.01Lux
  • Lens: 1.8mm or 2.8mm or 3.7mm Lens
  • Size:32*32mm
  • OSD Menu Cable, BNC Connector
  • Power: 12 V DC (Power adapter Not Included)
  • NTSC
  • Mini Module CCD Camera

Specification:

CXD SeriesModelPCBC700TVL
NameSony CCD Module Camera
CameraImage Sensor1/3"Sony Super HAD CCD
DSPSony Effio-E (4140+811)
Resolution700TVL
Min. Illumination0.01Lux
Effective Pixels
NTSC: 976(H)x494(V)
Video SignalNTSC
Standard Lens1.8mm /2.8mm /3.7mm Lens
Elec Shutter1/50(1/60)s to 1/100,000s
Day& NightElectronic Day& Night
White BalanceAuto
SynchronizationInternal Synchronization
Video Output1.0Vp-p Composite Output (75Ω/BNC)
S/N RatioMore than 48dB
BLCAuto
AGCAuto
IndustrialPower Supply12 V DC ± 10%
StandardWorking Temp-20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
 OutputBNC Connector
 Dimension32(W)*32(L)mm
 Weight38g

Packing List:

  • OSD Cable x 1
  • 700tvl Camera x 1
