HIKVISION OEM DS-2CE72HFT-F28 (AC346-FD/F) 5MP Full Time ColorVu Turret Camera HD TVI/AHD/CVI/CVBS
This camera is a HIKVISION OEM product. Brown box without Hikvision logo and without product part number on the product.
** Warranty is provided by Seller, NOT from Hikvision USA
***Return is not accepted if the reason is you cannot get support from Hikvision

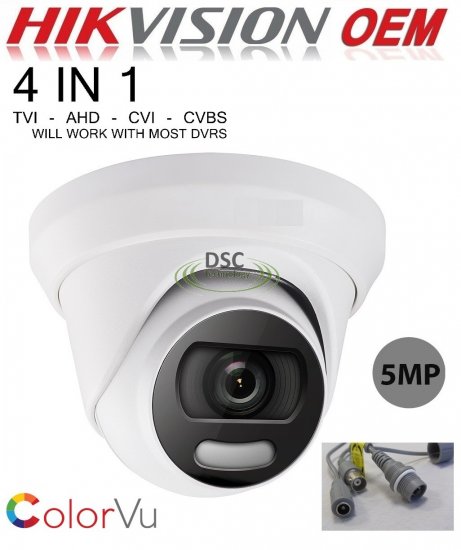

5MP ColorVu Fixed Turret Camera
- 5 MP full time color Turret camera
- 24/7 full color imaging
- Warm supplemental light with 20 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
****Power Adapter And Cable are Not Included***
| Image Sensor | 5 MP CMOS |
| Resolution | 2560 (H) × 1944 (V) |
| Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
| Min. illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Slow Shutter | Max. 16 times |
| Lens | 2.8 mm fixed lens |
| Field of View | 2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126° |
| Lens Mount | M16 |
| Day & Night | Color |
| WDR (Wide Dynamic Range) | 130 dB |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Menu |
| Image Mode | STD/HIGH SAT |
| AGC | Yes |
| White Balance | Auto/Manual |
| HLC | Yes |
| BLC (Backlight Compensation) | Yes |
| Privacy Mask | 4 programmable privacy masks |
| Motion Detection | 4 programmable areas |
| WDR | Yes |
| Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart light |
| Interface |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 3 W |
| Protection Level | IP67 |
| Material | Main Body: Metal Mounting Base: Plastic |
| White Light | Up to 66ft(20 m) |
| Dimensions | Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37") |
| Weight | Approx. 336 g (0.74 lb.) |
This camera is a HIKVISION OEM product. Brown box without Hikvision logo and without product part number on the product.
NOTES:
This is a HD Analog Camera that needs to work with 5MP resolution HD Analog TVI/CVI DVRs. Kindly verify your DVR specifications to check product compatibility. This is not a Network/IP/PoE camera and it's not compatible with NVRs/IP systems.
