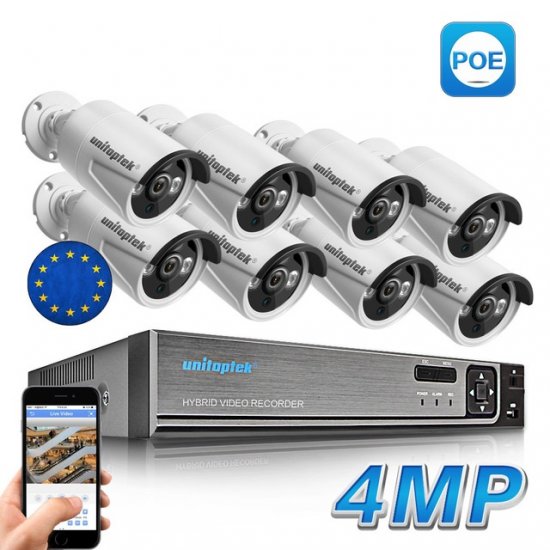

8Pcs 4.0MP HD IP Camera Outdoor Waterproof 8CH H.265 POE Security Camera NVR CCTV System P2P Day/Night View Surveillance Kit
8 Channel
4MP NVR Features:
- Support HDMI output
- Support web, CMS, center platform management software MYEYE .
- Support multiple cloud technology, network penetration, alarm information
pushed to your phone and other functions;
- Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP,
UPNP, EMAIL, IP searches etc.);
- Visit remotely, built-in ARSP, achieve start up by one step.
8 Channel 4MP NVR Specification :
| Model |
N6808HE |
| Main processor |
HI3536 |
| Screen display |
1/4/8 |
| Video standard |
PAL(625TVL,50 Fields / sec. ; NTSC(525TVL,60 Fields / sec. ) |
| Video compression |
H.265/H.264 |
| Display quality |
Max 5MP |
| Coding capacity |
5M/4M/3M/1080P/960P |
| Digital input |
4*5MP / 8*4MP |
| Recording mode |
Manual>Alarm>Video Detection>Continuous |
| Local Playback |
2*5M/2*4M/4*1080P |
| Video inquiry |
Point-in-time retrieval, calendar search, event search, channel search |
| Storage Backup |
720P: 40G / day /channel 1080P: 80 G/ day/channel |
| Video save |
HDD. Network |
| Backup mode |
Network backup, USB mobile HDD,USB Burner |
| Interface |
Video input(BNC): No |
| Video output |
1ch HDMI HD output, 1Ch VGA Output |
| Audio input |
8Ch (Must IPC Support) |
| Audio output |
NO |
| Network interface |
1* 10M/100M Adaptive Ethernet port, 8 POE ports |
| Ethernet |
1x RJ-45 interface, for internet (10M/100M/1000M) |
| POE Power Supply |
48V 3A for 8pcs POE IPC(802.3af) |
| USB interface |
2*USB interface |
| Hard disk Port |
1*SATA(Up to 6TB ) |
| Power supply |
48V/3A Power supply |
| Nvr Size |
255*223*42mm |
| Nvr weight |
0.9kg(not including HDD) |
4MP IP Camera Key Features:
| Model |
IPCX-H62-4MP-P |
| Image Sensor |
1/3"CMOS |
| Minimum Illumination |
0.01Lux; 0Lux(IR on) |
| Electronic Shutter |
Auto/Manual |
| Lens |
4mm |
| Day& Night |
3pcs Array LEDs, Up to 20 meters(65.6ft) |
| Video Compression |
H.265 |
| Max. Image Resolution |
2592x1520 25fps |
| Image Settings |
Saturation, brightness, contrast,sharpness adjustment |
| Backlight compensation |
Auto |
| White Balance |
Auto |
| Remote operation |
System settings,stream management, account management,
network management
|
| Motion detection |
Support |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, |
| PPPoE, SMTP, NTP, UPnP,ICMP, FTP, 802.1X, HTTPS |
| Network Transmission |
P2P penetrate automatic forwarding |
| System Compatibility |
ONVIF 2.0 |
| Communication Interface |
1 RJ45 10M / 100M ethernet interface |
| Operating Conditions |
-30 °C ~ 55 °C (-22 °F ~ 131 °F) |
| Humidity 10%~90% |
| Power Supply |
DC 12V 1A or 2A (Not included) / POE Support |
| Power Consumption |
Max. 8 W |
| Waterproof |
Yes |
| Connector |
RJ45 & 5.5mm DC Plug |
| Camera Weight / Size |
300g / 172*61*61mm |
| Packing Weight / Size |
500g / 160×90×80 mm |
Package list: This is 2592*1520 4.0MP HD POE CCTV System
- 1 x 8 Channel 4.0MP NVR built-in 8 POE port
- 8 x 4MP Bullet IP Cameras
- 4 x 10M Network Cable for Camera
- 4 x 20M Network Cable for Camera
- 1 x Power Supply for NVR
- 1 x Mouse for NVR
