The UNV NVR508-64B is a professional 64-channel network video recorder designed for large commercial and enterprise IP video surveillance systems requiring high camera capacity, substantial recording bandwidth, scalable storage, and centralized security management.
Supporting recording resolutions up to 16 megapixels, up to 320Mbps incoming bandwidth, eight internal SATA hard-drive bays, RAID storage, N+1 hot-spare operation, independent or simultaneous HDMI and VGA display configurations, and Uniview Ultra 265 compression, the NVR508-64B provides a dependable recording platform for demanding multi-camera installations.
Specifications
| Model | NVR508-64B |
|---|
| Product Type | Professional Network Video Recorder |
|---|
| IP Camera Inputs | Up to 64 Channels |
|---|
| Built-In PoE Ports | No — External PoE Switch Required |
|---|
| Recording Resolution | Up to 16MP; also supports 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, and CIF |
|---|
| Video Compression | Ultra 265, H.265, and H.264 |
|---|
| Incoming Bandwidth | Up to 320Mbps |
|---|
| Outgoing Bandwidth | Up to 160Mbps |
|---|
| Remote Users | Up to 128 |
|---|
| Decoding — Ultra 265/H.265 | Up to 2 × 16MP at 30fps, 2 × 12MP at 30fps, 4 × 4K at 30fps, 6 × 5MP at 30fps, 8 × 4MP at 30fps, 10 × 3MP at 30fps, 16 × 1080p at 30fps, 32 × 960p at 25fps, 36 × 720p at 30fps, or 64 × D1 |
|---|
| Local Synchronous Playback | Up to 16 Channels |
|---|
| HDMI Output | 1 × HDMI, Up to 4K at 30Hz |
|---|
| VGA Output | 1 × VGA, Up to 1920 × 1080 at 60Hz |
|---|
| Display Operation | Simultaneous HDMI/VGA output by default; independent output can be configured |
|---|
| Live-View Layout | Up to 64-camera display in simultaneous-output mode; up to 32-camera display per output in independent mode |
|---|
| Audio Input | 1 × RCA |
|---|
| Audio Output | 1 × RCA |
|---|
| Two-Way Audio | 1 Channel Using RCA Audio Input and Output |
|---|
| Audio Compression | G.711A and G.711U |
|---|
| Hard-Drive Interfaces | 8 × SATA |
|---|
| Maximum Listed Drive Capacity | Up to 24TB per compatible HDD, subject to drive dimensions, firmware, approved-drive support, temperature, and revision |
|---|
| Storage Features | Disk Groups and Redundant Storage |
|---|
| RAID Support | RAID 1 and RAID 5 |
|---|
| Hot-Spare Support | N+1 Recorder Hot Spare |
|---|

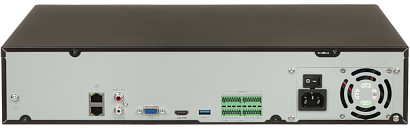

| Network Interfaces | 2 × RJ45 10/100/1000Mbps Self-Adaptive Gigabit Ethernet Ports |
|---|
| Camera Compatibility | Compatible UNV Cameras, ONVIF Profiles S/G/T, and Supported RTSP Devices |
|---|

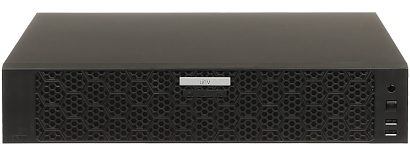

| USB Interfaces | Front: 2 × USB 2.0;
Rear: 1 × USB 3.0 |
|---|
| Alarm Inputs | 16 Channels |
|---|
| Alarm Outputs | 4 Channels |
|---|
| Serial Interface | 1 × RS485 |
|---|
| ANR Support | Yes, with Compatible Cameras and Edge Storage |
|---|
| Power Supply | AC 100–240V |
|---|
| Power Consumption | Up to 25W Without Hard Drives |
|---|
| Operating Temperature | -10°C to 55°C / 14°F to 131°F |
|---|
| Operating Humidity | Up to 90% RH, Non-Condensing |
|---|
| Dimensions | 442 × 426 × 89mm / 17.4 × 16.8 × 3.5 Inches |
|---|
| Weight | Up to 5.5kg / 12.13 lb Without Hard Drives |
|---|

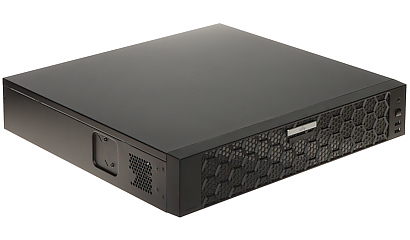

| Chassis | Professional 2U Rack-Mount Design |
|---|
| Compliance | NDAA Listed; CE, FCC, UL, RoHS, and WEEE |
|---|
Important
Standard Non-PoE Recorder
The NVR508-64B does not include built-in PoE camera ports. All IP cameras must connect through compatible external PoE switches or the existing network infrastructure.
This is the standard NVR508-64B and should not be confused with the NVR508-64E-IQ, NVR508-64E-R, or NVR508-64E-R-IQ models.
