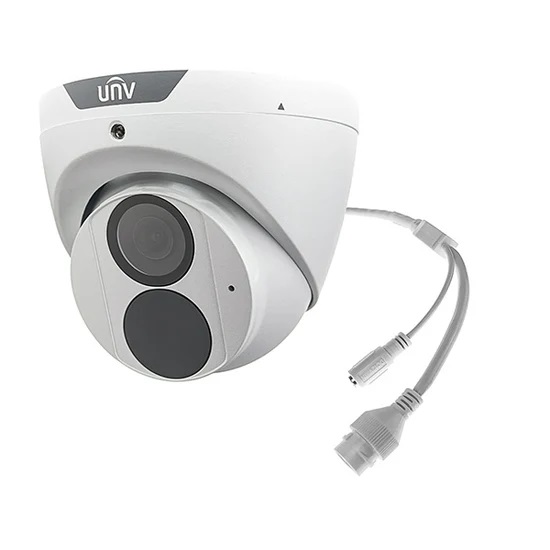

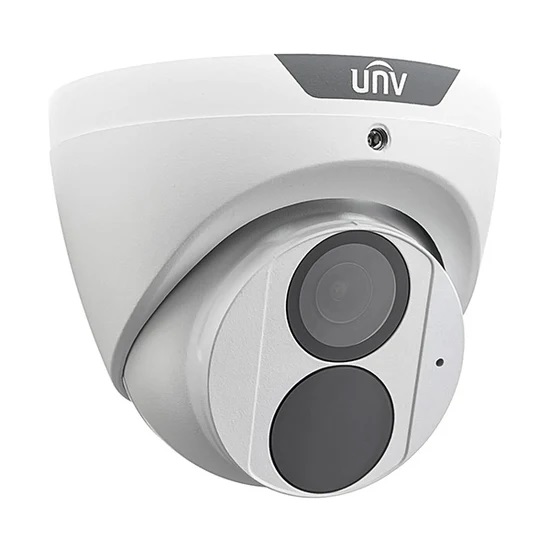

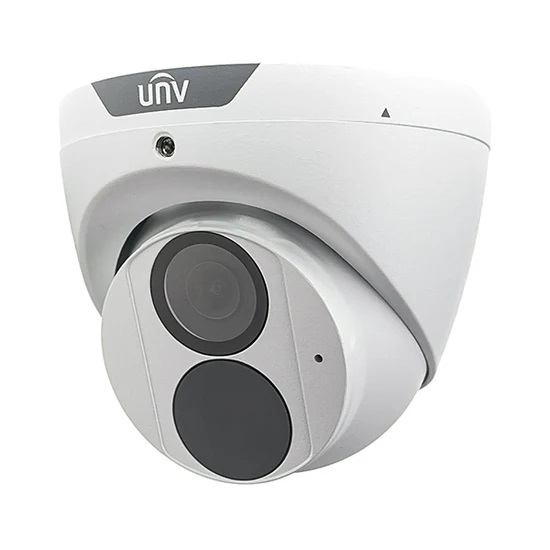

UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)

(image for) UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
(image for) UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
(image for) UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
(image for) UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
(image for) UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
(image for) UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
(image for) UNV 4MP IP Weatherproof IR Turret Camera with Built-in Mic and 2.8mm Fixed Lens (IPC3614SR3-ADF28KM-G)
  • Model: IPC3614SR3-ADF28K-G
  • Shipping Weight: 2.5 lbs
  • 19 Units in Stock
  • Manufactured by: Uniview

 Ask a Question

$199.95

Add to Cart:

UNV 4MP Turret  IP Security Camera with a 2.8mm Fixed Lens & Built-in Mic (IPC3614SR3-ADPF28K-G)

Optics

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • Up to 120 dB WDR(Wide Dynamic Range)

Compression

  • H.265, H.264, MJPEG

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • 2 KV surge protection designed for network interface
  • Built-in Mic
  • IP66
  • 3-Axis
IPC3614SR3-ADPF28-F
Camera
Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Lens2.8mm@F2.0
DORI DistanceLens (mm)Detect (m)Observe (m)
2.863.025.2
4.090.036.0
Angle of view(H)107.8°
Angle of View (V)57.0°
Angle of View (O)140.1°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour:0.01Lux (F2.0, AGC ON)
0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>56dB
IR RangeUp to 30m (98ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
Frame RateMain Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P(1920*1080),Max30fps
Sub Stream: 720P (1280*720), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 4 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°
DewarpingNA
HLCSupported
BLCSupported
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
Built-in MicSupported
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H)Φ118 x 96mm (Φ4.6” x 3.8”)
Net Weight0.33kg (0.73lb)
MaterialMetal + Plastic
Operating Conditions-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection2KV
Ingress ProtectionIP67
